PVC & Fiber
Explore our certified range of high-pressure hoses, diagnostic measuring lines, automated filling pressure lines, and custom thermal-traced assemblies manufactured under strict ISO quality controls.
In modern industrial automated manufacturing, high-pressure fluid conveyance systems—commonly referred to as pressure lines—serve as the vital circulatory network for hydraulic power, chemical processing, automated filling lines, and diagnostic monitoring. Selecting a premier China pressure line manufacturer requires an in-depth evaluation of metallurgy, polymer chemistry, burst-to-working pressure ratios, thermal stabilization, and stringent regulatory compliance.
To establish optimal operational security and fluid dynamic efficiency, industrial pressure lines are categorized based on their structural architecture, internal fluid medium compatibility, and working pressure thresholds. China's leading pressure line suppliers utilize advanced multi-layer co-extrusion and automated wire braiding to fulfill diverse sector applications:
| Pressure Line Type | Core Construction Material | Working Pressure Range | Primary Industrial Application |
|---|---|---|---|

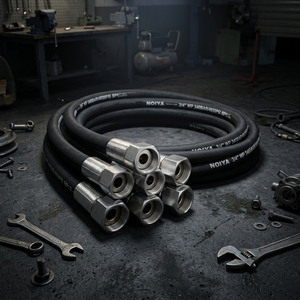

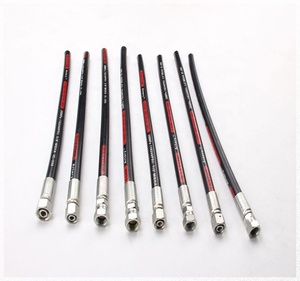

| Hydraulic Wire Braided (SAE 100R2AT / 2SN) | Oil-resistant Synthetic NBR Rubber + 2 High-Tensile Steel Wire Braids | 80 Bar to 415 Bar (1,160 to 6,000 PSI) | Heavy machinery, hydraulic diagnostic lines, petroleum fluid conveyance. |
| Micro-Hydraulic Diagnostic Test Hose | Polyamide/PTFE Inner Core + Kevlar/Synthetic Fiber + Polyurethane Outer Cover | Up to 630 Bar (9,135 PSI) | Hydraulic pressure test points, portable diagnostic kits, micro-measuring systems. |

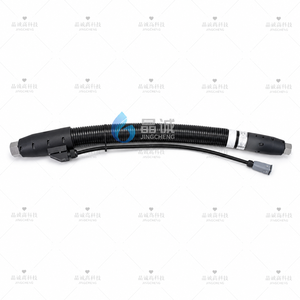

| Anti-Static Heated Pressure Hose Line | Smooth Bore PTFE/PFA Core + Thermal Heating Elements + Stainless Braid | 20 Bar to 150 Bar at up to 230°C | Hot melt adhesive application, chemical fluid dosing, paint spraying factories. |

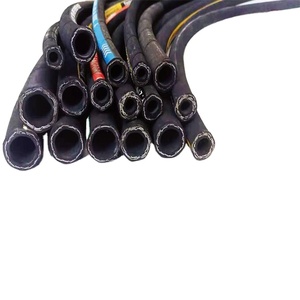

| High-Pressure Reinforced PVC Fiber Line | Flexible PVC Inner Tube + High-Tensile Polyester Fiber Spiral Reinforcement | 10 Bar to 50 Bar | Industrial pressure washing, agricultural spraying, light chemical transfer. |

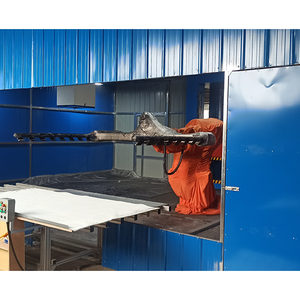

| Polyurethane High-Pressure Spray Foaming Line | Solvent-Resistant Nylon/Polyester Core + Abrasion-Proof Polyurethane Sheath | 150 Bar to 280 Bar | PU foam insulation machinery, two-component reaction injection molding (RIM). |
Distinguishing top-tier China pressure line manufacturers from standard commercial traders involves verifying their internal quality control systems, in-house tooling capabilities, and end-to-end traceability. Rooted in over six decades of precision engineering heritage (incorporating quality protocols derived from ISO 9001 and ISO 13485 clean-room device manufacturing), leading manufacturers maintain end-to-end oversight across every phase of production:
Custom polymer compounding, raw material spectrometry, and specialized extrusion dies allow custom outer diameters (such as 3x6mm micro-hoses up to 4-inch heavy industrial lines) with exact wall thickness consistency.
Every single batch undergoes hydrostatic pressure validation, impulse fatigue cycle testing (>200,000 cycles at 133% working pressure), and burst pressure safety factor evaluation (minimum 4:1 safety ratio).
Laser etching and batch serialization are printed directly on the outer casing of every hose line, enabling complete raw material and production run verification for global regulatory audits.
Furthermore, leading Chinese suppliers hold international quality certifications including ISO 9001:2015, ISO 13485, CE Marking, WHO-GMP compliance for cleanroom fluid lines, and full compliance with EU REACH and RoHS environmental safety mandates. This guarantees that imported pressure lines seamlessly clear customs clearance and meet European and North American industrial safety standards.
To maximize Information Gain for engineering teams, it is vital to examine the specific technological advancements transforming pressure line manufacturing in China today:
In thermal liquid transfer applications—such as polyurethane processing, hot-melt adhesive dispensing, and viscous food grade fluid transfer—maintaining precise uniform temperature profile without localized fluid degradation is paramount. Advanced heated pressure lines feature an inner smooth bore PTFE tube lined with a conductive carbon layer to dissipate static charges generated by high-velocity fluid friction. Integrated micro-spiral heating elements controlled by RTD sensors maintain temperatures up to 230°C evenly across the line length, preventing cold spots and pump cavitation.

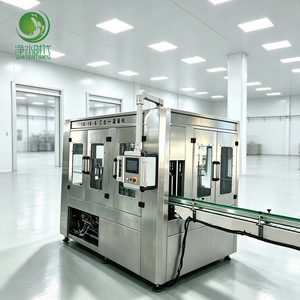

In high-speed liquid packaging, micro-pressure filling lines utilize specialized volumetric pressure balancing valves to achieve rapid liquid dispensing (e.g., 50–70mm diameter bottles) without inducing turbulence or oxygenation. Integrating precise PLC automated controls and heavy-duty gear components ensures volumetric precision within ±0.5%, significantly scaling industrial output while decreasing container stress.

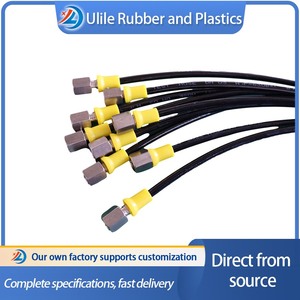

Diagnostic testing requires flexible conduits with minimal volumetric expansion under extreme hydrostatic spikes. Modern 3x6mm micro high-pressure test hoses utilize multi-layered polyamide inner liners reinforced with synthetic fiber braids capable of supporting continuous operating pressures of 630 Bar (9,135 PSI). Outfitted with abrasion-resistant protective covers and stainless steel test point fittings, these lines allow field technicians to connect diagnostic tools to live hydraulic systems safely.
As industrial automation accelerates towards Industry 4.0 and eco-friendly manufacturing, China's pressure line manufacturing ecosystem is undergoing significant technological shifts.
Integration of flexible conductive sensors directly into the hose braiding enables real-time monitoring of internal pressure spikes, temperature fluctuations, and localized wall fatigue before catastrophic failure occurs.
Transitioning from traditional phthalate-plasticized PVC to bio-based thermoplastic elastomers (TPE) and halogen-free polyurethane coatings, drastically reducing environmental footprint during lifecycle disposal.
Development of multi-layer co-extruded fluoropolymer liners (ETFE/PFA) preventing volatile organic compound (VOC) permeation in aggressive chemical and hydrogen fuel cell transfer lines.
When procuring industrial pressure lines at volume, sourcing managers must look beyond initial unit price and evaluate the Total Cost of Ownership (TCO), supplier reliability, and custom engineering capabilities:
Get authoritative answers to common engineering and procurement queries regarding China pressure line manufacturing.
Need custom high-pressure hose assemblies, diagnostic test lines, or automated filling pressure machinery? Contact our engineering export team today for technical data sheets, free samples, and competitive OEM factory pricing.
